Money In

Checkout Link

Create a secure, customizable checkout link session to capture payments with cards, bank transfers, and other payment methods. Supports 3D Secure authentication, cards storage for recurring billing, invoice issuance, customer creation, and webhook notifications.

Request

Request to generate a checkout page session URL

Path

POST /checkout/link

Example (Basic)

Basic example to create a one-time payment link with a fixed amount.

{
  "type": "CHOOSE_WHAT_TO_PAY",
  "item": {
    "title": "My product name",
    "frequency": ["ONE_TIME"], // [optional] default "ONE_TIME"
    "amount": "1200.00" // [optional] preset an amount to pay else an amount field will show for the user to enter
  }
}

Example (Donation form)

An example of a donation form with one-time, monthly and annual subscription options and an amount field the user can select.

Flexible checkouts (CHOOSE_WHAT_TO_PAY) use a single item object for the payer-facing offer. customization.confirmation_message appears after successful payment unless you rely on redirects. Customer handling: send customer_id for an existing record, send a customer object to create or prefill, or omit both and optionally supply customer_fields for extra form fields (name, surname, and email always show).

{
  "type": "CHOOSE_WHAT_TO_PAY",
  // Pass your product / campaign details via item
  "item": {
    "title": "My product name", // Product title, will appear on invoice
    "description": "My product description", // [optional] longer description
    "frequency": ["ONE_TIME", "MONTHLY", "ANNUALLY"], // options the payer may choose among
    "amount_options": [50, 100, 150, 200, 250], // [optional] preset amounts (max five)
    "amount_max": 3000 // [optional] cap when payer enters any amount
  },

  "customization": {
    "button_text": "Donate now", // [optional] primary button label — see Advanced for full options
    "confirmation_message": "Thank you for your donation" // [optional] shown after payment; else use redirects
  },

  "signature": "secret-key-for-payload", // [optional] payload signature when configured

  "notification": {
    "email": "me@my-email.co.za", // [optional] email notifications on successful payment
    "webhook_url": "https://merchant.example/webhooks/payments" // webhook URL for each successful payment
  },

  // Issue and optionally email an invoice after payment
  "invoice": {
    "is_generate": true,
    "is_send": true // send paid invoice to the customer when true
  },

  // If neither customer_id nor customer is passed, show a form — these are extra collectable fields
  "customer_fields": [
    "CONTACT_NUMBER",
    "ID_NUMBER",
    "COMPANY_NAME",
    "COMPANY_REG",
    "VAT_NUMBER",
    "BILLING_ADDRESS",
    "SHIPPING_ADDRESS"
  ]
}

Example (Products, subscriptions and invoices)

Example with a recurring and one-time product to create a subscription with invoices.

{
  "type": "PRODUCTS_AND_SUBSCRIPTIONS",

  "customization": {
    "button_text": "Pay now" // [optional] button text — default label if omitted depends on checkout
  },

  "signature": "secret-key-for-payload", // [optional] shared-secret signature for the payload

  "customer_id": "cus_abc123...", // existing customer record; alternatively pass full customer object

  // Catalog lines (one-off and recurring products may be mixed — see Products reference)
  "items": [
    {
      "product_id": "pro_abc123...",
      "qty": 2 // default 1 when omitted
    },
    {
      "product_id": "pro_xyz789..."
    }
  ],

  // Invoice for this checkout / subscriptions created from it
  "invoice": {
    "is_generate": true, // generate invoice for the basket or subscription billing
    "is_send": true // email invoice when paid
  },

  // Redirects after payer finishes or taps cancel
  "redirects": {
    "success_url": "https://merchant.example/success?myquery=myparam", // may append &signature=
    "cancel_url": "https://merchant.example/cancel"
  }
}

Example (Advanced )

Advanced example with example with all options

{
  "type": "PRODUCTS_AND_SUBSCRIPTIONS",

  "signature": "secret-key-for-payload", // [optional] shared-secret signature for the payload, see the signature section below

  // Inline customer create / prefilled profile (alternative: customer_id)
  "customer": {
    "reference": "CLN240919000001",
    "company_name": null,
    "person_name": "John",
    "person_surname": "Doe",
    "client_type": "RESIDENT_INDIVIDUAL", // [optional]
    "id_type": "SOUTH_AFRICAN_ID",
    "id_number": "8007014800087",
    "email": "johndoe@mail.com",
    "contact_number": "+27831234567",
    "billing_address": {
      "line1": "1 Loop Street",
      "line2": "Floor 5",
      "city_or_town": "Cape Town",
      "province_or_state": "Western Cape",
      "postal_or_zip_code": "8001",
      "country": "ZA"
    },
    "shipping": {
      "contact_name": "Jane Doe",
      "contact_number": "+27820000000",
      "address": {
        "line1": "1 Loop Street",
        "line2": "Floor 5",
        "city_or_town": "Cape Town",
        "province_or_state": "Western Cape",
        "postal_or_zip_code": "8001",
        "country": "ZA"
      }
    },
    "metadata": {
      "custom_field_1": "custom data 1",
      "custom_field_2": "custom data 2"
    }
  },

  // Basket built from catalogue products — discount per line optional
  "items": [
    {
      "product_id": "pro_abc123...",
      "qty": 2,
      "discount": 100 // discount amount for this item (advanced use)
    },
    {
      "product_id": "pro_xyz789...",
      "qty": 3
    },

     // ...when no product_id is passed a product can be created
    {
      "name": "Generic Wooden Ball",
      "description": "Good For Training And Recreational Purposes",
      "code": "PRD-606075",
      "unit_label": "each",
      "price_excl": "2409.86",
      "is_tax": false,
      "pricing_type": "RECURRING",
      "product_status": "ACTIVE",
      "billing_period": "MONTHLY",
      "custom_period": null,
      "custom_interval": null,
      "picture_default": null,
      "pictures": {} // {...} media bundle when uploading gallery assets programmatically
    }
  ],

  "invoice": {
    "is_generate": true,
    "is_send": true
  },

  // Restrict rails shown — omit array to expose every method toggled on for the merchant
  "payment": {
    "payment_methods": ["CARD", "ZAPPER"]
  },

  "redirects": {
    // Successful redirect URLs may append `signature` when signatures are configured.
    "success_url": "https://merchant.example/success?myquery=myparam",
    "cancel_url": "https://merchant.example/cancel"
  },

  "settings": {
    "expiry_time": 1440 // minutes until checkout link lapses — omit when the link never expires (default)
  },

  "customization": {
    "button_text": "Pay",
    "type": "PAGE", // or "EMBED" for iframe-style hosting or in-app payments
    "is_display_cancel_button": true,
    "is_display_total": true,
    "is_display_items": true, // cart line detail list
    "brand": {
      "primary": "#00DC82",
      "secondary": "#CCCCCC"
    }
  }
}

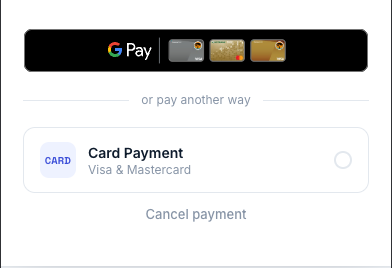

Example (Embed payments)

Embed payments into your mobile app or frameworks like React, Angular or Vue

{
  "type": "PRODUCTS_AND_SUBSCRIPTIONS",

  "customization": {
    "button_text": "Pay now", // [optional] button text — default label if omitted depends on checkout
    "type": "EMBED", // show embedded screen that can be displayed in a iFrame or WebView, this will also send message events instead of a redirect
    "is_display_cancel_button": false, // hide the cancel button, if true will trigger a 'payment.cancelled' message
    "is_display_total": false, // hide the total amount
    "is_display_items": false, // hide the checkout items
    "brand": {
      "primary": "#00DC82", // brand according to your app
      "secondary": "#CCCCCC"
    }
  },

  "customer_id": "cus_abc123...", // existing customer record; alternatively pass full customer object

  // Catalog lines (one-off and recurring products may be mixed — see Products reference)
  "items": [
    {
      "product_id": "pro_abc123...",
      "qty": 2 // default 1 when omitted
    },
    {
      "product_id": "pro_xyz789..."
    }
  ],

  // Invoice for this checkout / subscriptions created from it
  "invoice": {
    "is_generate": true, // generate invoice for the basket or subscription billing
    "is_send": true // email invoice when paid
  },
}

The following message events will be sent to your app via a native bridge; use them to drive the next action:

payment.loaded
payment.cancelled
payment.failed
payment.successful
payment.pending
payment.closed

The following data will be sent in the message on payment.successful events to verify the transaction:

{
  "source": "kwik-payments",
  "event": "payment.successful",
  "sessionId": "ses_abc123...",
  "transactionId": "tra_abc123...",
  "customerId": "cus_abc123...",
  "status": "PAID"
}

The following data will be sent in the message on payment.failed events:

{
  "source": "kwik-payments",
  "event": "payment.failed",
  "sessionId": "ses_abc123...",
  "transactionId": "tra_abc123...",
  "customerId": "cus_abc123...",
  "status": "DECLINED",
  "message": "Your transaction was declined due to insufficient funds"
}

Request Parameters

Fields below appear in the request body examples on this page. Y = required for all requests, C = required or applicable depending on type and whether you pass customer_id vs inline customer.

Field	Required	Type	Description	Example
type	Y	ENUM	Checkout mode: `CHOOSE_WHAT_TO_PAY` (flexible / donation-style) or `PRODUCTS_AND_SUBSCRIPTIONS` (catalog line items)	`CHOOSE_WHAT_TO_PAY`
item	C	Object	Present when `type` is `CHOOSE_WHAT_TO_PAY`	See basic and donation examples
item.title	C	String	Product or payment title; shown on the checkout and invoice	My product name
item.description	N	String	Optional longer product description	My product description
item.frequency	N	Array	Frequencies the payer can choose (e.g. one-time and subscriptions). Defaults to `ONE_TIME` if omitted	`["ONE_TIME", "MONTHLY", "ANNUALLY"]`
item.amount	N	String	Preset amount; if omitted the user can enter an amount	1200.00
item.amount_options	N	Array	Preset amounts the user can pick from, max 5 amounts	[50.00, 100.00, 150.00, 200.00, 250.00]
item.amount_max	N	Number	Maximum amount allowed when the user enters an amount	3000.00
items	C	Array	Present when `type` is `PRODUCTS_AND_SUBSCRIPTIONS`; each row either references `product_id` or defines an inline product (omit `product_id`), see products	See examples
items.product_id	C	String	Catalog product id when referencing an existing product; omit for an inline-defined line item	pro_abc123...
items.qty	N	Integer	Quantity for this line item (default `1`)	2
items.discount	N	Number	Discount amount for catalog lines (`product_id` present), advanced use	100.00
items.name	C	String	Product name when defining an inline item (no `product_id`)	Generic Wooden Ball
items.description	N	String	Inline item description	Good For Training And Recreational Purposes
items.code	C	String	Unique product code; record may be created when unique	PRD-606075
items.unit_label	N	String	Unit label	each
items.price_excl	C	String	Price excluding tax	2409.86
items.is_tax	N	Boolean	Whether tax applies	false
items.pricing_type	C	ENUM	e.g. `RECURRING` or one-time as per your catalog	`RECURRING`
items.product_status	N	ENUM	e.g. `ACTIVE`	`ACTIVE`
items.billing_period	C	String	When recurring (e.g. `MONTHLY`)	MONTHLY
items.custom_period	N	null	Custom billing period detail if applicable	null
items.custom_interval	N	null	Custom interval if applicable	null
items.picture_default	N	null	Default image reference	null
items.pictures	N	Object	Gallery or image payload	`{}`
signature	N	String	Optional passphrase signature for verifying the payload	secret-key-for-payload
customer_id	C	String	Use an existing customer record instead of `customer` inline object	cus_abc123...
customer_fields	N	Array	Extra fields on the payer form when neither `customer_id` nor `customer` is supplied; name, surname and email always show	`["CONTACT_NUMBER", "ID_NUMBER", "COMPANY_NAME", "COMPANY_REG", "VAT_NUMBER", "BILLING_ADDRESS", "SHIPPING_ADDRESS"]`
customer	C	Object	Create or prefill payer details when not using only `customer_id`	See advanced example
customer.reference	C	String(35)	Your reference for this customer	CLN240919000001
customer.company_name	C	String(64)	Company name when applicable	null
customer.person_name	C	String(32)	First name	John
customer.person_surname	C	String(32)	Surname	Doe
customer.client_type	N	ENUM	`RESIDENT_INDIVIDUAL`, `NON_RESIDENT_INDIVIDUAL`, `DOMESTIC_COMPANY`, `FOREIGN_COMPANY`, `FINANCIAL_INSTITUTION`	`RESIDENT_INDIVIDUAL`
customer.id_type	N	ENUM	`SOUTH_AFRICAN_ID`, `PASSPORT_NUMBER`, `TEMPORARY_RESIDENCE`, `COMPANY_REGISTRATION_NUMBER`	`SOUTH_AFRICAN_ID`
customer.id_number	N	String(13)	Identity or registration number	8007014800087
customer.email	C	String(128)	Email address	johndoe@mail.com
customer.contact_number	C	String(16)	Contact number	+27831234567
customer.billing_address.line1	N	String	Billing line 1	1 Loop Street
customer.billing_address.line2	N	String	Billing line 2	Floor 5
customer.billing_address.city_or_town	N	String	City or town	Cape Town
customer.billing_address.province_or_state	N	String	Province or state	Western Cape
customer.billing_address.postal_or_zip_code	N	String	Postal or ZIP code	8001
customer.billing_address.country	N	String(2)	ISO 3166-1 alpha-2 country code	`ZA`
customer.shipping.contact_name	N	String	Shipping contact name	Jane Doe
customer.shipping.contact_number	N	String(16)	Shipping contact number	+27820000000
customer.shipping.address.line1	N	String	Shipping line 1	1 Loop Street
customer.shipping.address.line2	N	String	Shipping line 2	Floor 5
customer.shipping.address.city_or_town	N	String	Shipping city	Cape Town
customer.shipping.address.province_or_state	N	String	Shipping province or state	Western Cape
customer.shipping.address.postal_or_zip_code	N	String	Shipping postal code	8001
customer.shipping.address.country	N	String(2)	ISO 3166-1 alpha-2	`ZA`
customer.metadata	N	Object	Custom key/value metadata	`{"custom_field_1": "custom data 1"}`
invoice.is_generate	C	Boolean	Whether to generate an invoice for the payment or subscription	true
invoice.is_send	N	Boolean	Whether to send the paid invoice to the customer	true
notification.email	N	String	Email address to notify on each successful payment	me@my-email.co.za
notification.webhook_url	N	String	Webhook URL for each successful payment	https://merchant.example/webhooks/payments
redirects.success_url	N	String	Redirect after successful payment; `&signature=` appended if configured	https://merchant.example/success?myquery=myparam
redirects.cancel_url	N	String	Redirect if the payer cancels	https://merchant.example/cancel
payment.payment_methods	N	Array	Limit methods shown (`CARD`, `ZAPPER`, `SNAPSCAN`, `APPLE_PAY`, `GOOGLE_PAY`, `SCAN_TO_PAY`, `1VOUCHER`, `SCODE`, `MONEY_BADGER`)	[`CARD`, `ZAPPER`]
settings.expiry_time	N	Integer	Link lifetime in minutes; omit so the link does not expire (per advanced example comment)	1440
customization.button_text	N	String	Primary action button label	Pay
customization.confirmation_message	N	String	Message after successful payment (donation example); otherwise use redirects	Thank you for your donation
customization.type	N	ENUM	Create a link for a `PAGE` or pass through `EMBED` for iframe or in-app payments. The `EMBED` type pages will not redirect you but transmit a message via the window postMessage() method	`PAGE`
customization.is_display_cancel_button	N	Boolean	Show cancel control	true
customization.is_display_total	N	Boolean	Show total	true
customization.is_display_items	N	Boolean	Show line items	true
customization.brand.primary	N	String	Primary hex colour	#00DC82
customization.brand.secondary	N	String	Secondary hex colour	#CCCCCC

Response Body

{
    "status": true,
    "result": {
      "id": "chk_HVpCeoNys1f22X7QcuWHY",
      "session_id": "ses_G-xkVKoxHgEBrY8suKgR3",
      "amount": "1200.00",
      "currency": "ZAR",
      "customer_id": "cus_abc123...",
      "link_url": "https://pay.kwik.co.za/checkout/cs_test_a1b2c3",
      "expires_at": "2025-09-13T12:30:00Z"
    }
}

Response Parameters

Field	Type	Description	Example
status	Boolean	Indicates if the request was successful	true
result.id	String	Unique checkout session identifier	chk_HVpCeoNys1f22X7QcuWHY
result.session_id	String (32)	Session identifier for the checkout	ses_G-xkVKoxHgEBrY8suKgR3
result.amount	String	Checkout amount	1200.00
result.currency	String(32)	ISO 4217 currency code	`ZAR`
result.customer_id	String(32)	Associated customer ID	cus_abc123...
result.link_url	String	URL to redirect user to complete checkout	https://pay.kwik.co.za/checkout/cs_test_a1b2c3
result.expires_at	String	ISO timestamp when the checkout session expires	2025-09-13T12:30:00Z

Signature creation

When creating API keys on the dashboard you can download a passphrase key, use the key in the examples below to generate your signature and send it in the signature parameter:

const crypto = require('crypto')

function canonicalize(value) {
  if (value === null || typeof value !== 'object') {
    return JSON.stringify(value)
  }

  if (Array.isArray(value)) {
    return `[${value.map(canonicalize).join(',')}]`
  }

  return `{${Object.keys(value)
    .filter((key) => key !== 'signature' && value[key] !== undefined)
    .sort()
    .map((key) => `${JSON.stringify(key)}:${canonicalize(value[key])}`)
    .join(',')}}`
}

function generateKwikSignature(payload, passphrase) {
  const canonicalPayload = canonicalize(payload)

  return crypto
    .createHmac('sha256', passphrase)
    .update(canonicalPayload)
    .digest('hex')
}

// Usage example
const payload = {
  type: 'CHOOSE_WHAT_TO_PAY',
  item: {
    title: 'My product name',
    frequency: ['ONE_TIME'], // optional
    amount: '1200.00'       // optional
  }
}

// get this from the dashboard when creating an API key
const passphrase = 'your-secure-passphrase'

const signature = generateKwikSignature(payload, passphrase)

const requestBody = {
  ...payload,
  signature
}

console.log('Canonical payload:', canonicalize(payload))
console.log('Signature:', signature)
console.log('Request body:', requestBody)

<?php

function canonicalize($value) {
    if ($value === null) return 'null';
    if (is_bool($value)) return $value ? 'true' : 'false';
    if (is_int($value) || is_float($value)) return json_encode($value);
    if (is_string($value)) return json_encode($value);

    if (is_array($value)) {
        $isList = array_keys($value) === range(0, count($value) - 1);

        if ($isList) {
            return '[' . implode(',', array_map('canonicalize', $value)) . ']';
        }

        ksort($value);

        $parts = [];
        foreach ($value as $key => $item) {
            if ($key === 'signature') continue;
            $parts[] = json_encode((string)$key) . ':' . canonicalize($item);
        }

        return '{' . implode(',', $parts) . '}';
    }

    return json_encode($value);
}

function generateKwikSignature($payload, $passphrase) {
    return hash_hmac('sha256', canonicalize($payload), $passphrase);
}

// Usage
$payload = [
    "type" => "CHOOSE_WHAT_TO_PAY",
    "item" => [
        "title" => "My product name",
        "frequency" => ["ONE_TIME"],
        "amount" => "1200.00"
    ]
];

$passphrase = 'your-secure-passphrase';

$signature = generateKwikSignature($payload, $passphrase);

$requestBody = array_merge($payload, [
    "signature" => $signature
]);

print_r($requestBody);

using System;
using System.Collections.Generic;
using System.Linq;
using System.Security.Cryptography;
using System.Text;
using System.Text.Json;

public class KwikSignature
{
    public static string Canonicalize(object value)
    {
        if (value == null) return "null";

        if (value is string || value is bool || value is int || value is long || value is decimal || value is double)
            return JsonSerializer.Serialize(value);

        if (value is IEnumerable<object> list)
            return "[" + string.Join(",", list.Select(Canonicalize)) + "]";

        if (value is IDictionary<string, object> dict)
        {
            var parts = dict
                .Where(kvp => kvp.Key != "signature")
                .OrderBy(kvp => kvp.Key)
                .Select(kvp => JsonSerializer.Serialize(kvp.Key) + ":" + Canonicalize(kvp.Value));

            return "{" + string.Join(",", parts) + "}";
        }

        return JsonSerializer.Serialize(value);
    }

    public static string GenerateKwikSignature(IDictionary<string, object> payload, string passphrase)
    {
        var canonical = Canonicalize(payload);

        using var hmac = new HMACSHA256(Encoding.UTF8.GetBytes(passphrase));
        var hash = hmac.ComputeHash(Encoding.UTF8.GetBytes(canonical));

        return Convert.ToHexString(hash).ToLowerInvariant();
    }

    public static void Main()
    {
        var payload = new Dictionary<string, object>
        {
            ["type"] = "CHOOSE_WHAT_TO_PAY",
            ["item"] = new Dictionary<string, object>
            {
                ["title"] = "My product name",
                ["frequency"] = new List<object> { "ONE_TIME" },
                ["amount"] = "1200.00"
            }
        };

        var passphrase = "your-secure-passphrase";

        var signature = GenerateKwikSignature(payload, passphrase);
        payload["signature"] = signature;

        Console.WriteLine(JsonSerializer.Serialize(payload));
    }
}

import javax.crypto.Mac;
import javax.crypto.spec.SecretKeySpec;
import java.nio.charset.StandardCharsets;
import java.util.*;

public class KwikSignature {

    public static String canonicalize(Object value) {
        if (value == null) return "null";

        if (value instanceof String) return "\"" + value + "\"";
        if (value instanceof Boolean || value instanceof Number) return value.toString();

        if (value instanceof List<?>) {
            List<?> list = (List<?>) value;
            List<String> parts = new ArrayList<>();
            for (Object item : list) parts.add(canonicalize(item));
            return "[" + String.join(",", parts) + "]";
        }

        if (value instanceof Map<?, ?> map) {
            List<String> keys = new ArrayList<>();
            for (Object k : map.keySet()) {
                if (!"signature".equals(k)) keys.add((String) k);
            }
            Collections.sort(keys);

            List<String> parts = new ArrayList<>();
            for (String key : keys) {
                parts.add("\"" + key + "\":" + canonicalize(map.get(key)));
            }

            return "{" + String.join(",", parts) + "}";
        }

        return "\"" + value.toString() + "\"";
    }

    public static String generateKwikSignature(Map<String, Object> payload, String passphrase) throws Exception {
        String canonical = canonicalize(payload);

        Mac mac = Mac.getInstance("HmacSHA256");
        mac.init(new SecretKeySpec(passphrase.getBytes(StandardCharsets.UTF_8), "HmacSHA256"));

        byte[] hash = mac.doFinal(canonical.getBytes(StandardCharsets.UTF_8));

        StringBuilder hex = new StringBuilder();
        for (byte b : hash) hex.append(String.format("%02x", b));

        return hex.toString();
    }

    public static void main(String[] args) throws Exception {
        Map<String, Object> payload = new HashMap<>();

        payload.put("type", "CHOOSE_WHAT_TO_PAY");

        Map<String, Object> item = new HashMap<>();
        item.put("title", "My product name");
        item.put("frequency", List.of("ONE_TIME"));
        item.put("amount", "1200.00");

        payload.put("item", item);

        String passphrase = "your-secure-passphrase";

        String signature = generateKwikSignature(payload, passphrase);

        payload.put("signature", signature);

        System.out.println(payload);
    }
}

import json
import hmac
import hashlib

def canonicalize(value):
    if value is None or not isinstance(value, (dict, list)):
        return json.dumps(value, separators=(',', ':'))

    if isinstance(value, list):
        return '[' + ','.join(canonicalize(v) for v in value) + ']'

    return '{' + ','.join(
        json.dumps(k) + ':' + canonicalize(value[k])
        for k in sorted(value.keys())
        if k != 'signature'
    ) + '}'

def generate_kwik_signature(payload, passphrase):
    canonical = canonicalize(payload)

    return hmac.new(
        passphrase.encode(),
        canonical.encode(),
        hashlib.sha256
    ).hexdigest()

# Usage
payload = {
    "type": "CHOOSE_WHAT_TO_PAY",
    "item": {
        "title": "My product name",
        "frequency": ["ONE_TIME"],
        "amount": "1200.00"
    }
}

passphrase = "your-secure-passphrase"

signature = generate_kwik_signature(payload, passphrase)

request_body = {
    **payload,
    "signature": signature
}

print(request_body)

Webhook

When a checkout session is completed, updated, or expires, a webhook may be delivered to notification.webhook_url when that field was supplied on create. Broader platform webhooks are configured separately if applicable.

Possible event values include checkout.completed, checkout.expired, checkout.failed, and others listed under Webhook events. The subscription object is present only when a recurring collection is created.

Webhook Payload

{
  // checkout.completed · checkout.expired · checkout.failed · etc.
  "event": "checkout.completed",
  "data": [
    {
      "checkout": {
        "id": "chk_HVpCeoNys1f22X7QcuWHY",
        "session_id": "ses_G-xkVKoxHgEBrY8suKgR3",
        "amount": "1200.00",
        "currency": "ZAR",
        "customer_id": "cus_abc123...",
        "card_id": "crd_SFq2E9LskQimPkf2mRqnV", // populated for card tenders
        "transaction_id": "tra_pr6CvR_4pvWwmgQ4y3dtY",
        "transaction_status": "ACTIVE",
        "expires_at": "2025-09-13T12:30:00Z",
        "completed_at": "2025-09-13T10:15:30Z"
      },
      // Only present once a recurring collection / mandate results from checkout
      "subscription": {
        "id": "col_Pw5jImVFZfpd0Lplp35op",
        "amount": "1200.00",
        "currency": "ZAR",
        "subscription_status": "ACTIVE",
        "payment_method": "CARD",
        "payment_method_id": "pam_ak7lHmJ0a2fuD1q4M6b0q",
        "created_at": "2025-09-13T10:15:30Z"
      }
    }
  ],
  "created_at": "2025-09-13T12:30:00Z"
}

Webhook Payload Parameters

Field	Type	Description	Example
event	String	Type of webhook event that occurred	checkout.completed
data	Array	Array containing checkout and payment data	...
data.checkout.id	String	Unique checkout session identifier	chk_HVpCeoNys1f22X7QcuWHY
data.checkout.session_id	String	Session identifier for the checkout	ses_G-xkVKoxHgEBrY8suKgR3
data.checkout.amount	String	Checkout amount	1200.00
data.checkout.currency	String(3)	ISO 4217 currency code	`ZAR`
data.checkout.customer_id	String(32)	Associated customer ID	cus_abc123...
data.checkout.card_id	String	Card identifier when payment was made with a saved or newly created card	crd_SFq2E9LskQimPkf2mRqnV
data.checkout.transaction_id	String	Transaction identifier	tra_pr6CvR_4pvWwmgQ4y3dtY
data.checkout.transaction_status	ENUM	Transaction status, see lookups	`ACTIVE`
data.checkout.expires_at	String	ISO timestamp when checkout session expires	2025-09-13T12:30:00Z
data.checkout.completed_at	String	ISO timestamp when checkout was completed	2025-09-13T10:15:30Z
data.subscription.id	String	Subscription identifier	col_Pw5jImVFZfpd0Lplp35op
data.subscription.amount	String	Subscription amount	1200.00
data.subscription.currency	String(3)	ISO 4217 currency code	`ZAR`
data.subscription.subscription_status	ENUM	Subscription status, see lookups	`ACTIVE`
data.subscription.payment_method	String	Payment method used	CARD
data.subscription.payment_method_id	String	Payment method id used	pam_ak7lHmJ0a2fuD1q4M6b0q
data.subscription.created_at	String	ISO timestamp when payment was created	2025-09-13T10:15:30Z
created_at	String	ISO timestamp when webhook was created	2025-09-13T10:15:30Z

Webhook Events

Event	Description	Trigger Condition	Data Included
`checkout.completed`	Checkout session was successfully completed with payment	When customer completes payment successfully	Checkout details, payment information, transaction data
`checkout.expired`	Checkout session expired without completion	When checkout session reaches expiry time without payment	Checkout details only, no payment data
`checkout.failed`	Checkout session failed due to payment failure	When payment processing fails (declined card, insufficient funds, etc.)	Checkout details, failed payment attempt, error information
`checkout.abandoned`	Customer abandoned the checkout process	When customer leaves checkout page without completing	Checkout details, abandonment timestamp
`checkout.pending`	Payment is pending additional verification	When payment requires manual review or 3DS authentication	Checkout details, pending payment status
`checkout.cancelled`	Checkout was cancelled by customer or system	When cancel button is used or system cancels due to fraud	Checkout details, cancellation reason

Webhook Security

All webhooks are sent with the following headers for verification:

X-Signature: HMAC-SHA256 signature of the payload
X-Timestamp: Unix timestamp of when the webhook was sent
User-Agent: Kwik-Webhooks/1.0

Webhook Response

Your endpoint should respond with a 200 status code to acknowledge receipt. Failed webhooks will be retried up to 3 times with exponential backoff.

Transactions

Retrieve and monitor transaction records including payment attempts, status changes, and settlement details. Access comprehensive transaction history with filtering, pagination, and detailed status information for reporting and reconciliation.

Checkout Form

Create a secure, customizable checkout form session to capture payments with cards, bank transfers, and other payment methods. Supports 3D Secure authentication, cards storage for recurring billing, invoice issuance, customer creation, and webhook notifications.
