Checkout Form

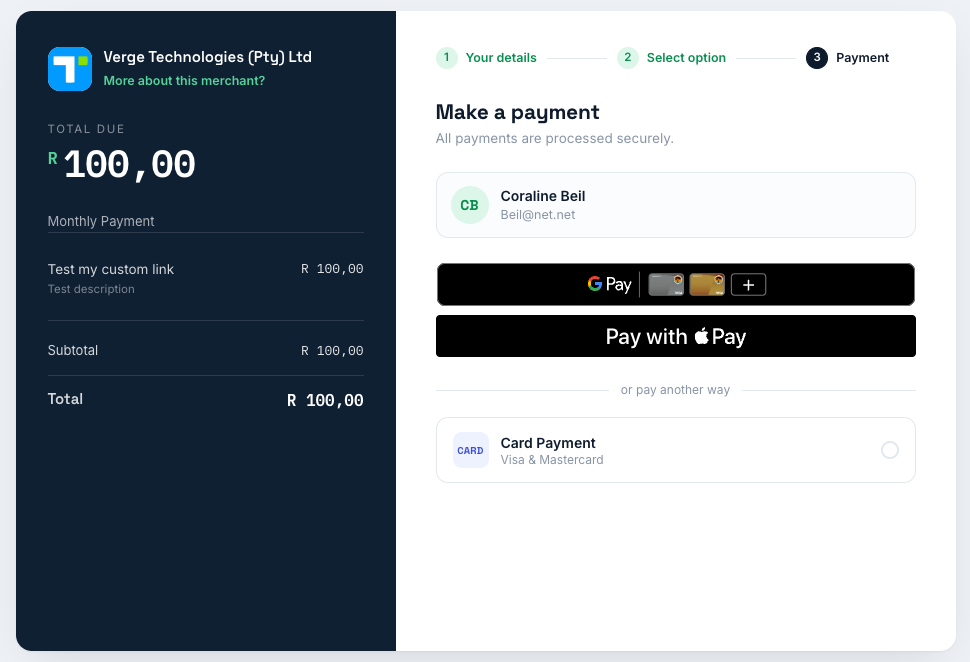

Create a secure, customizable checkout form session to capture payments with cards, bank transfers, and other payment methods. Supports 3D Secure authentication, cards storage for recurring billing, invoice issuance, customer creation, and webhook notifications.

Request

Request to generate a checkout page session

Path

POST /checkout/form

Example (Basic)

Basic example to create a one-time payment form with a fixed amount.

<form action="[path]/checkout/form" method="post">
  <input type="hidden" name="public_key" value="<INSERT YOUR PUBLIC KEY>">
  <input type="hidden" name="type" value="CHOOSE_WHAT_TO_PAY">
  <!-- item: title on checkout / invoice -->
  <input type="hidden" name="item_title" value="My product name">
  <!-- [optional] default ONE_TIME when item_frequency omitted -->
  <input type="hidden" name="item_frequency" value="ONE_TIME">
  <!-- [optional] preset an amount to pay else an amount field will show for the user to enter -->
  <input type="hidden" name="item_amount" value="1200.00">

  <input type="submit" value="Pay">
</form>

Example (Donation form)

An example of a donation form with one-time, monthly and annual subscription options and an amount field the user can select.

<form action="[path]/checkout/form" method="post">
  <input type="hidden" name="public_key" value="<INSERT YOUR PUBLIC KEY>">

  <input type="hidden" name="type" value="CHOOSE_WHAT_TO_PAY">

  <!-- Pass your product / campaign details via item -->
  <input type="hidden" name="item_title" value="My product name">
  <input type="hidden" name="item_description" value="My product description">
  <!-- [optional] options the payer may choose among -->
  <input type="hidden" name="item_frequency" value="ONE_TIME,MONTHLY,ANNUALLY">
  <!-- [optional] preset amounts (max five) -->
  <input type="hidden" name="item_amount_options" value="50,100,150,200,250">
  <!-- [optional] cap when payer enters any amount -->
  <input type="hidden" name="item_amount_max" value="3000">

  <input type="hidden" name="customization_button_text" value="Donate now">
  <input type="hidden" name="customization_confirmation_message" value="Thank you for your donation">

  <!-- [optional] when API keys/signing are configured -->
  <input type="hidden" name="signature" value="secret-key-for-payload">

  <input type="hidden" name="notification_email" value="me@my-email.co.za">
  <input type="hidden" name="notification_webhook_url" value="https://merchant.example/webhooks/payments">

  <input type="hidden" name="invoice_is_generate" value="true">
  <input type="hidden" name="invoice_is_send" value="true">

  <!-- Comma-separated enums when no customer_id / prefilled customer (name, surname, email always captured) -->
  <input type="hidden" name="customer_fields" value="CONTACT_NUMBER,ID_NUMBER,COMPANY_NAME,COMPANY_REG,VAT_NUMBER,BILLING_ADDRESS,SHIPPING_ADDRESS">

  <input type="submit" value="Donate">
</form>

Example (Products, subscriptions and invoices)

Example with a recurring and one-time product to create a subscription with invoices.

<form action="[path]/checkout/form" method="post">
  <input type="hidden" name="public_key" value="<INSERT YOUR PUBLIC KEY>">

  <input type="hidden" name="type" value="PRODUCTS_AND_SUBSCRIPTIONS">

  <input type="hidden" name="customization_button_text" value="Pay now">

  <!-- [optional] payload signature when configured -->
  <input type="hidden" name="signature" value="secret-key-for-payload">

  <input type="hidden" name="customer_id" value="cus_abc123...">

  <input type="hidden" name="items_0_product_id" value="pro_abc123...">
  <input type="hidden" name="items_0_qty" value="2">
  <input type="hidden" name="items_1_product_id" value="pro_xyz789...">
  <!-- items_1_qty omitted → default qty 1 -->

  <input type="hidden" name="invoice_is_generate" value="true">
  <input type="hidden" name="invoice_is_send" value="true">

  <input type="hidden" name="redirects_success_url" value="https://merchant.example/success?myquery=myparam">
  <input type="hidden" name="redirects_cancel_url" value="https://merchant.example/cancel">

  <input type="submit" value="Pay">
</form>

Example (Advanced )

Advanced example with example with all options

<form action="[path]/checkout/form" method="post">
  <input type="hidden" name="public_key" value="<INSERT YOUR PUBLIC KEY>">

  <input type="hidden" name="type" value="PRODUCTS_AND_SUBSCRIPTIONS">

  <!-- [optional] shared-secret signature for the payload, see the signature section below -->
  <input type="hidden" name="signature" value="secret-key-for-payload">

  <input type="hidden" name="customer_reference" value="CLN240919000001">
  <input type="hidden" name="customer_company_name" value="">
  <input type="hidden" name="customer_person_name" value="John">
  <input type="hidden" name="customer_person_surname" value="Doe">
  <input type="hidden" name="customer_client_type" value="RESIDENT_INDIVIDUAL">
  <input type="hidden" name="customer_id_type" value="SOUTH_AFRICAN_ID">
  <input type="hidden" name="customer_id_number" value="8007014800087">
  <input type="hidden" name="customer_email" value="johndoe@mail.com">
  <input type="hidden" name="customer_contact_number" value="+27831234567">
  <input type="hidden" name="customer_billing_address_line1" value="1 Loop Street">
  <input type="hidden" name="customer_billing_address_line2" value="Floor 5">
  <input type="hidden" name="customer_billing_address_city_or_town" value="Cape Town">
  <input type="hidden" name="customer_billing_address_province_or_state" value="Western Cape">
  <input type="hidden" name="customer_billing_address_postal_or_zip_code" value="8001">
  <input type="hidden" name="customer_billing_address_country" value="ZA">
  <input type="hidden" name="customer_shipping_contact_name" value="Jane Doe">
  <input type="hidden" name="customer_shipping_contact_number" value="+27820000000">
  <input type="hidden" name="customer_shipping_address_line1" value="1 Loop Street">
  <input type="hidden" name="customer_shipping_address_line2" value="Floor 5">
  <input type="hidden" name="customer_shipping_address_city_or_town" value="Cape Town">
  <input type="hidden" name="customer_shipping_address_province_or_state" value="Western Cape">
  <input type="hidden" name="customer_shipping_address_postal_or_zip_code" value="8001">
  <input type="hidden" name="customer_shipping_address_country" value="ZA">
  <input type="hidden" name="customer_metadata_custom_field_1" value="custom data 1">
  <input type="hidden" name="customer_metadata_custom_field_2" value="custom data 2">

  <!-- catalogue lines -->
  <input type="hidden" name="items_0_product_id" value="pro_abc123...">
  <input type="hidden" name="items_0_qty" value="2">
  <input type="hidden" name="items_0_discount" value="100">
  <input type="hidden" name="items_1_product_id" value="pro_xyz789...">
  <input type="hidden" name="items_1_qty" value="3">

  <!-- inline product row (omit items_2_product_id) -->
  <input type="hidden" name="items_2_name" value="Generic Wooden Ball">
  <input type="hidden" name="items_2_description" value="Good For Training And Recreational Purposes">
  <input type="hidden" name="items_2_code" value="PRD-606075">
  <input type="hidden" name="items_2_unit_label" value="each">
  <input type="hidden" name="items_2_price_excl" value="2409.86">
  <input type="hidden" name="items_2_is_tax" value="false">
  <input type="hidden" name="items_2_pricing_type" value="RECURRING">
  <input type="hidden" name="items_2_product_status" value="ACTIVE">
  <input type="hidden" name="items_2_billing_period" value="MONTHLY">
  <input type="hidden" name="items_2_custom_period" value="">
  <input type="hidden" name="items_2_custom_interval" value="">
  <input type="hidden" name="items_2_picture_default" value="">

  <input type="hidden" name="invoice_is_generate" value="true">
  <input type="hidden" name="invoice_is_send" value="true">

  <!-- comma-separated enums: CARD,ZAPPER,... -->
  <input type="hidden" name="payment_methods" value="CARD,ZAPPER">

  <!-- Successful redirect URLs may append `signature` when signatures are configured. -->
  <input type="hidden" name="redirects_success_url" value="https://merchant.example/success?myquery=myparam">
  <input type="hidden" name="redirects_cancel_url" value="https://merchant.example/cancel">

  <input type="hidden" name="settings_expiry_time" value="1440">

  <input type="hidden" name="customization_button_text" value="Pay">
  <!-- page-style checkout only; embed / iframe payloads are documented on Checkout Link, not duplicated here -->
  <input type="hidden" name="customization_is_display_cancel_button" value="true">
  <input type="hidden" name="customization_is_display_total" value="true">
  <input type="hidden" name="customization_is_display_items" value="true">
  <input type="hidden" name="customization_brand_primary" value="#00DC82">
  <input type="hidden" name="customization_brand_secondary" value="#CCCCCC">

  <input type="submit" value="Pay">
</form>

Request Parameters

Form input names mirror the Checkout Link request parameters. Y applies to forms that POST a checkout; C depends on type and whether you send customer_id vs prefixed customer_* fields.

Field (input name)	Required	Type	Description	Example
public_key	Y	String	Public API key (dashboard / integrations). Always include.	`<INSERT YOUR PUBLIC KEY>`
type	Y	ENUM	Same as Checkout Link: `CHOOSE_WHAT_TO_PAY` or `PRODUCTS_AND_SUBSCRIPTIONS`.	CHOOSE_WHAT_TO_PAY
item_title	C	String	Flexible checkout title (invoice / UI).	My product name
item_description	N	String	Flexible checkout description.	My product description
item_frequency	N	String	Comma-separated frequency enums (`ONE_TIME`, `MONTHLY`, …). Default is `ONE_TIME`.	ONE_TIME,MONTHLY,ANNUALLY
item_amount	N	String	Preset amount; omit so payer enters amount.	1200.00
item_amount_options	N	String	Comma-separated preset amounts (max five values, matches Checkout Link).	50,100,150,200,250
item_amount_max	N	Number	Cap when payer enters any amount.	3000
signature	N	String	Payload signature when your integration signs requests.	secret-key-for-payload
items__product_id	C	String	nth line item catalogue id (`n` zero-based). Omit for an inline product row on that index. See products.	pro_abc123...
items__qty	N	Integer	Quantity for nth line (default 1 when omitted).	2
items__discount	N	Number	Discount for nth catalogue line (`product_id` present).	100
items__name	C	String	Inline line only: product name when `items_{n}_product_id` is absent.	Generic Wooden Ball
items__description	N	String	Inline line description.	Good For Training …
items__code	C	String	Inline line unique code.	PRD-606075
items__unit_label	N	String	Inline unit label.	each
items__price_excl	C	String	Inline price excluding tax.	2409.86
items__is_tax	N	Boolean	Inline tax flag.	false
items__pricing_type	C	ENUM	Inline pricing type (`RECURRING`, etc.).	RECURRING
items__product_status	N	ENUM	e.g. `ACTIVE`.	ACTIVE
items__billing_period	C	String	When recurring.	MONTHLY
items__custom_period	N	String	Optional opaque period value.
items__custom_interval	N	String	Optional opaque interval value.
items__picture_default	N	String	Optional default picture reference.
customer_id	C	String	Existing customer instead of prefixed `customer_*` body.	cus_abc123...
customer_fields	N	String	Comma-separated field tokens when payer form should collect extras (LINK enum list — see Checkout Link). Uppercase enums as in JSON.	CONTACT_NUMBER,ID_NUMBER,…
customer_reference …	C	Prefix	Same nested customer fields as Checkout Link flattened: `customer_person_name`, `customer_billing_address_line1`, `customer_metadata_{key}` (underscore key segments), etc.	See advanced HTML example
invoice_is_generate	C	Boolean	Generate invoice (`true` / `false`).	true
invoice_is_send	N	Boolean	Send paid invoice (`true` / `false`).	true
notification_email	N	String	Notify email on successful payment.	me@my-email.co.za
notification_webhook_url	N	String	Webhook URL for successful payment notifications (same semantics as Checkout Link `notification.webhook_url`).	https://merchant.example/webhooks/payments
redirects_success_url	N	String	Success redirect (`redirects.success_url` in JSON).	https://merchant.example/success
redirects_cancel_url	N	String	Cancel redirect (`redirects.cancel_url` in JSON).	https://merchant.example/cancel
payment_methods	N	String	Comma-separated method codes (`CARD`, `ZAPPER`, …) — mirrors `payment.payment_methods` JSON array.	CARD,ZAPPER
settings_expiry_time	N	Integer	Minutes until checkout link/session expiry (`settings.expiry_time`).	1440
customization_button_text	N	String	Primary button label.	Pay
customization_confirmation_message	N	String	Message after payment (flexible flows).	Thank you…
customization_is_display_cancel_button	N	Boolean	Show cancel control.	true
customization_is_display_total	N	Boolean	Show total.	true
customization_is_display_items	N	Boolean	Show line items.	true
customization_brand_primary	N	String	Primary hex colour.	#00DC82
customization_brand_secondary	N	String	Secondary hex colour.	#CCCCCC

For full JSON-shape definitions (enums, array lengths, behavioural notes), use Checkout Link alongside this flattened mapping.

Signature creation

When creating API keys on the dashboard you can download a passphrase key, use the key in the examples below to generate your signature and send it in the signature parameter:

const express = require('express')
const crypto = require('crypto')
const app = express()

function generateSignature(params, passphrase) {
  const canonical = Object.keys(params)
    .sort()
    .map(k => `${k}=${params[k]}`)
    .join('&')

  return crypto
    .createHmac('sha256', passphrase)
    .update(canonical)
    .digest('hex')
}

app.get('/checkout', (req, res) => {
  const params = {
    public_key: 'pk_test_123',
    type: 'CHOOSE_WHAT_TO_PAY',
    item_title: 'My product name',
    item_frequency: 'ONE_TIME',
    item_amount: '1200.00'
  }

  const signature = generateSignature(params, 'your-passphrase')

  res.send(`
    <form action="https://api.kwik.co.za/checkout/form" method="post">
      ${Object.entries(params).map(([k,v]) => `<input type="hidden" name="${k}" value="${v}">`).join('')}
      <input type="hidden" name="signature" value="${signature}">
      <button type="submit">Pay</button>
    </form>
  `)
})

app.listen(3000)

<?php

function generateSignature($params, $passphrase) {
    ksort($params);

    $canonical = [];
    foreach ($params as $k => $v) {
        $canonical[] = "$k=$v";
    }

    return hash_hmac('sha256', implode('&', $canonical), $passphrase);
}

$params = [
    "public_key" => "pk_test_123",
    "type" => "CHOOSE_WHAT_TO_PAY",
    "item_title" => "My product name",
    "item_frequency" => "ONE_TIME",
    "item_amount" => "1200.00"
];

$signature = generateSignature($params, "your-passphrase");
?>

<form action="https://api.kwik.co.za/checkout/form" method="post">
  <?php foreach ($params as $key => $value): ?>
    <input type="hidden" name="<?= $key ?>" value="<?= $value ?>">
  <?php endforeach; ?>

  <input type="hidden" name="signature" value="<?= $signature ?>">
  <input type="submit" value="Pay">
</form>

using System;
@using System.Security.Cryptography
@using System.Text

@functions {
    string GenerateSignature(Dictionary<string, string> parameters, string passphrase)
    {
        var canonical = string.Join("&", parameters
            .OrderBy(x => x.Key, StringComparer.Ordinal)
            .Select(x => $"{x.Key}={x.Value}"));

        using var hmac = new HMACSHA256(Encoding.UTF8.GetBytes(passphrase));
        var hash = hmac.ComputeHash(Encoding.UTF8.GetBytes(canonical));

        return Convert.ToHexString(hash).ToLowerInvariant();
    }
}

@{
    var parameters = new Dictionary<string, string>
    {
        ["public_key"] = "pk_test_123",
        ["type"] = "CHOOSE_WHAT_TO_PAY",
        ["item_title"] = "My product name",
        ["item_frequency"] = "ONE_TIME",
        ["item_amount"] = "1200.00"
    };

    var passphrase = "your-passphrase";
    var signature = GenerateSignature(parameters, passphrase);
}

<form action="https://api.kwik.co.za/checkout/form" method="post">
    @foreach (var field in parameters)
    {
        <input type="hidden" name="@field.Key" value="@field.Value" />
    }

    <input type="hidden" name="signature" value="@signature" />

    <input type="submit" value="Pay" />
</form>

<%@ page import="javax.crypto.Mac" %>
<%@ page import="javax.crypto.spec.SecretKeySpec" %>
<%@ page import="java.nio.charset.StandardCharsets" %>
<%@ page import="java.util.*" %>

<%!
    public String generateSignature(Map<String, String> parameters, String passphrase) throws Exception {
        List<String> keys = new ArrayList<>(parameters.keySet());
        Collections.sort(keys);

        List<String> parts = new ArrayList<>();

        for (String key : keys) {
            parts.add(key + "=" + parameters.get(key));
        }

        String canonical = String.join("&", parts);

        Mac mac = Mac.getInstance("HmacSHA256");
        mac.init(new SecretKeySpec(passphrase.getBytes(StandardCharsets.UTF_8), "HmacSHA256"));

        byte[] hash = mac.doFinal(canonical.getBytes(StandardCharsets.UTF_8));

        StringBuilder hex = new StringBuilder();

        for (byte b : hash) {
            hex.append(String.format("%02x", b));
        }

        return hex.toString();
    }
%>

<%
    Map<String, String> parameters = new LinkedHashMap<>();

    parameters.put("public_key", "pk_test_123");
    parameters.put("type", "CHOOSE_WHAT_TO_PAY");
    parameters.put("item_title", "My product name");
    parameters.put("item_frequency", "ONE_TIME");
    parameters.put("item_amount", "1200.00");

    String passphrase = "your-passphrase";
    String signature = generateSignature(parameters, passphrase);
%>

<form action="https://api.kwik.co.za/checkout/form" method="post">
    <% for (Map.Entry<String, String> field : parameters.entrySet()) { %>
        <input type="hidden" name="<%= field.getKey() %>" value="<%= field.getValue() %>">
    <% } %>

    <input type="hidden" name="signature" value="<%= signature %>">

    <input type="submit" value="Pay">
</form>

from flask import Flask, render_template_string
import hmac, hashlib

app = Flask(__name__)

def generate_signature(params, passphrase):
    canonical = "&".join(f"{k}={params[k]}" for k in sorted(params))
    return hmac.new(passphrase.encode(), canonical.encode(), hashlib.sha256).hexdigest()

@app.route("/checkout")
def checkout():
    params = {
        "public_key": "pk_test_123",
        "type": "CHOOSE_WHAT_TO_PAY",
        "item_title": "My product name",
        "item_frequency": "ONE_TIME",
        "item_amount": "1200.00"
    }

    signature = generate_signature(params, "your-passphrase")

    inputs = "".join(
        f'<input type="hidden" name="{k}" value="{v}">'
        for k, v in params.items()
    )

    return render_template_string(f"""
        <form action="https://api.kwik.co.za/checkout/form" method="post">
            {inputs}
            <input type="hidden" name="signature" value="{signature}">
            <button type="submit">Pay</button>
        </form>
    """)

app.run()

Webhook

When a checkout session is completed, updated, or expires, a webhook may be delivered to notification_webhook_url when that field was supplied on create. Broader platform webhooks are configured separately if applicable.

Possible event values include checkout.completed, checkout.expired, checkout.failed, and others listed under Webhook events. The subscription object is present only when a recurring collection is created.

Webhook Payload

{
  // checkout.completed · checkout.expired · checkout.failed · etc.
  "event": "checkout.completed",
  "data": [
    {
      "checkout": {
        "id": "chk_HVpCeoNys1f22X7QcuWHY",
        "session_id": "ses_G-xkVKoxHgEBrY8suKgR3",
        "amount": "1200.00",
        "currency": "ZAR",
        "customer_id": "cus_abc123...",
        "card_id": "crd_SFq2E9LskQimPkf2mRqnV", // populated for card tenders
        "transaction_id": "tra_pr6CvR_4pvWwmgQ4y3dtY",
        "transaction_status": "ACTIVE",
        "expires_at": "2025-09-13T12:30:00Z",
        "completed_at": "2025-09-13T10:15:30Z"
      },
      // Only present once a recurring collection / mandate results from checkout
      "subscription": {
        "id": "col_Pw5jImVFZfpd0Lplp35op",
        "amount": "1200.00",
        "currency": "ZAR",
        "subscription_status": "ACTIVE",
        "payment_method": "CARD",
        "payment_method_id": "pam_ak7lHmJ0a2fuD1q4M6b0q",
        "created_at": "2025-09-13T10:15:30Z"
      }
    }
  ],
  "created_at": "2025-09-13T12:30:00Z"
}

Webhook Payload Parameters

Field	Type	Description	Example
event	String	Type of webhook event that occurred	checkout.completed
data	Array	Array containing checkout and payment data	...
data.checkout.id	String	Unique checkout session identifier	chk_HVpCeoNys1f22X7QcuWHY
data.checkout.session_id	String	Session identifier for the checkout	ses_G-xkVKoxHgEBrY8suKgR3
data.checkout.amount	String	Checkout amount	1200.00
data.checkout.currency	String(3)	ISO 4217 currency code	`ZAR`
data.checkout.customer_id	String(32)	Associated customer ID	cus_abc123...
data.checkout.card_id	String	Card identifier when payment was made with a saved or newly created card	crd_SFq2E9LskQimPkf2mRqnV
data.checkout.transaction_id	String	Transaction identifier	tra_pr6CvR_4pvWwmgQ4y3dtY
data.checkout.transaction_status	ENUM	Transaction status, see lookups	`ACTIVE`
data.checkout.expires_at	String	ISO timestamp when checkout session expires	2025-09-13T12:30:00Z
data.checkout.completed_at	String	ISO timestamp when checkout was completed	2025-09-13T10:15:30Z
data.subscription.id	String	Subscription identifier	col_Pw5jImVFZfpd0Lplp35op
data.subscription.amount	String	Subscription amount	1200.00
data.subscription.currency	String(3)	ISO 4217 currency code	`ZAR`
data.subscription.subscription_status	ENUM	Subscription status, see lookups	`ACTIVE`
data.subscription.payment_method	String	Payment method used	CARD
data.subscription.payment_method_id	String	Payment method id used	pam_ak7lHmJ0a2fuD1q4M6b0q
data.subscription.created_at	String	ISO timestamp when payment was created	2025-09-13T10:15:30Z
created_at	String	ISO timestamp when webhook was created	2025-09-13T10:15:30Z

Webhook Events

Event	Description	Trigger Condition	Data Included
`checkout.completed`	Checkout session was successfully completed with payment	When customer completes payment successfully	Checkout details, payment information, transaction data
`checkout.expired`	Checkout session expired without completion	When checkout session reaches expiry time without payment	Checkout details only, no payment data
`checkout.failed`	Checkout session failed due to payment failure	When payment processing fails (declined card, insufficient funds, etc.)	Checkout details, failed payment attempt, error information
`checkout.abandoned`	Customer abandoned the checkout process	When customer leaves checkout page without completing	Checkout details, abandonment timestamp
`checkout.pending`	Payment is pending additional verification	When payment requires manual review or 3DS authentication	Checkout details, pending payment status
`checkout.cancelled`	Checkout was cancelled by customer or system	When cancel button is used or system cancels due to fraud	Checkout details, cancellation reason

Webhook Security

All webhooks are sent with the following headers for verification:

X-Signature: HMAC-SHA256 signature of the payload
X-Timestamp: Unix timestamp of when the webhook was sent
User-Agent: Kwik-Webhooks/1.0

Webhook Response

Your endpoint should respond with a 200 status code to acknowledge receipt. Failed webhooks will be retried up to 3 times with exponential backoff.

Checkout Link

Create a secure, customizable checkout link session to capture payments with cards, bank transfers, and other payment methods. Supports 3D Secure authentication, cards storage for recurring billing, invoice issuance, customer creation, and webhook notifications.

Electronic Mandates

Hosted web pages that new customers can use to signup with or existing customers can use to add collections to their account.
